Description

Key Features and Design:
• LS7866C Integration: The 7866-SH utilizes the powerful LS7866C chip, which provides up to 32 bits of counting capabilities.

• Arduino Classic Compatibility: The board is specifically designed for direct interfacing with a 5V Arduino Classic board. This ensures seamless integration and ease of use for developers already familiar with the Arduino ecosystem. The direct connection simplifies wiring and reduces potential compatibility issues.

• Multi-Axis Support: The 7866-SH offers support for 3 or 6 independent axes. This multi-axis capability makes it suitable for complex applications requiring the simultaneous tracking of multiple rotary or linear encoders applications, such as robotics, CNC machines, and multi-axis positioning systems.

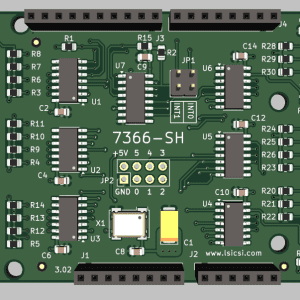

• Interrupt Functionality: To enable real-time response and efficient data handling, the shield incorporates interrupting capabilities. The L Flag output from the LS7866C, which signals various events like count overflows or index pulses, can be routed to either INT0 or INT1 on the Arduino. This routing is configured via a convenient 2×2 header jumper block (JP1), providing flexibility in interrupt management.

• Encoder Interface: The interface for connecting 5V encoders is done through a 6-position 2.00mm pitch connector. This standard connector type ensures compatibility with a wide range mating connector.

Applications:
By combining the powerful LS7866C with the user-friendly Arduino Classic platform, the 7866-SH offers a robust and versatile solution for developers seeking to implement advanced quadrature counting in their projects. The 7866-SH Arduino Shield is an excellent solution for a variety of projects that require precise measurement and control of motion. Potential applications include:

• Robotics: For tracking motor positions, arm articulation, and mobile robot navigation.

• CNC Machines: To monitor and control the position of various axes for precise cutting and engraving.

• 3D Printers: For accurate control of stepper motor positions and extrusion.

• Industrial Automation: In systems requiring feedback from rotary or linear encoders for process control and monitoring.

• Scientific Instruments: For precise data acquisition in experiments involving mechanical movement.
