Description

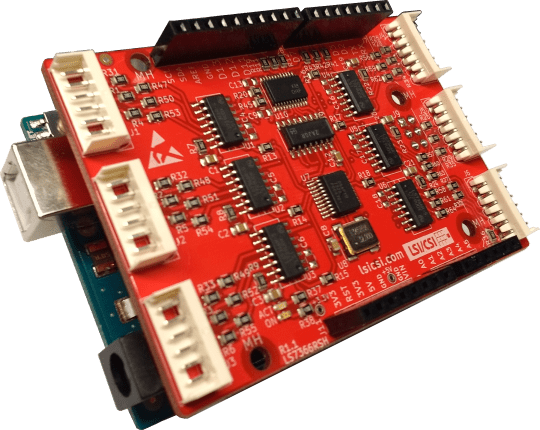

The LS7366RSh shield development kit highlights the LS7366R, a 32-bit CMOS counter with direct interface for quadrature clocks from incremental encoders and supports the index signals from incremental encoders to perform variety of marker functions.

The LS7366RSh features on-board 6 channels encoder platform for a full out-of-the-box experience and rapid development. This board is directly compatible with the Arduino boards. It unloads all the computation of keeping track of the encoders and interfaces directly with the Arduino board via the SPI and IOs. For additional information visit the LS7366R product page.

Features:

• 6-Channel on-board quadrature counters
• Direct interface with Arduino boards
• On-board 32 MHz clock
• SPI interface
